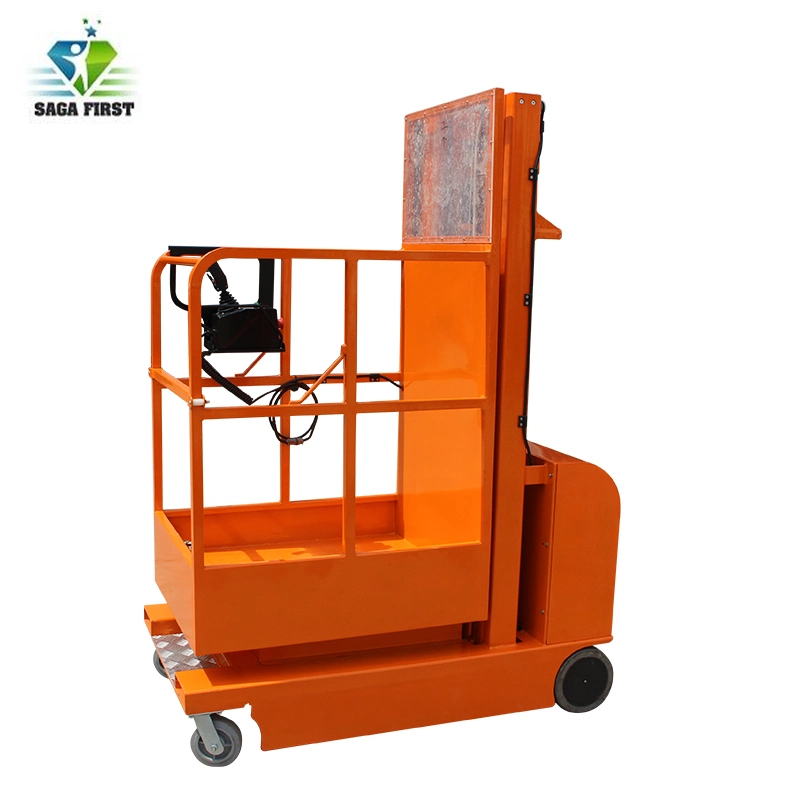

China Manufacture Aerial Order Picker
Introduction:
Moving manually and lifting by battery power.
Platform height from 2.7m to 4.5 available.
Compact structure, easier to use.
Specification:
Semi Electric Order Picker
| Model No. | SP2-2.7 | SP2-3.3 | SP2-4 | SP2-4.5 | |
| Lift Rated Capacity | kg | 200 | 200 | 200 | 200 |
| Max. Platform Height | mm | 2720 | 3300 | 4000 | 4500 |
| Max Working Height | mm | 4720 | 5300 | 6000 | 6500 |
| Ground Clearance | mm | 30 | 30 | 30 | |
| Platform Size | mm | 600*600 | 600*640 | 900*600 | |
| Lifting Motor | v/kw | 12/1.5 | 12/1.5 | 12/1.5 | |
| Aneroid Battery | v/Ah | 12/120 | 12/120 | 12/120 | |
| Charger | v/A | 12/15 | 12/15 | 12V/15A | |
| Overall Length | mm | 1300 | 1300 | 1300 | |
| Overall Width | mm | 760 | 840 | 840 | 840 |
| Overall Height | mm | 1760 | 2040 | 1930 | 2070 |
| Overall Net Weight | kg | 268 | 313 | 315 | 366 |
Full Electric Order Picker
| Model Type | OP3-2.7 | OP3-3.3 | OP3-4.0 | OP3-4.5 | |
| Max.Platform Height | mm | 2700 | 3300 | 4000 | 4500 |
| Max.Machine Height | mm | 4120 | 5000 | 5400 | 6000 |
| Ground Clearance | mm | 40 | |||
| Rated Capacity | kg | 300 | |||
| Platform Size | mm | 600*640 | |||
| Max.Drive Speed (platform Stowed) | km/h | 4 | |||
| Max.Drive Speed (platform Elevated) | km/h | 1.6 | |||
| Min.turning Radius | mm | 1500 | |||
| Max.Climbing Capacity | % | 15~20 | |||
| Driving Wheel Size | mm | 230*80 | |||
| Caster Size | mm | 6 | |||
| Driving Motor | v/kw | 2*24/0.4 | |||
| Lifting Motor | v/kw | 24/1.6 | |||
| Anerold battery | v/Ah | 2*12/150 | |||
| Charger | v/A | 24/15 | |||
| Overall Length | mm | 1530 | 1620 | ||
| Overall Width | mm | 700 | |||
| Overall Height | mm | 1830 | 2130 | 1840 | 2000 |
| Overall Net Weight | kg | 430 | 450 | 660 | 680 |
Application:
Configuration:
UP-down control panel
Emergency stop button
Emergent descent system
Stand-platform and cargo platform
High strength hydraulic cylinder
Electric motor and hydraulic pump station
Durable battery
Intelligent battery charger
Foot-step brakes
Non-marking PU wheels
Package:
Advantages:
Proportional control Self-lock Gate on Platform Emergency Lowering System
Drivable at Full Height Non Marking Tyre Automatic Brakes System
Emergency Stop Button Cylinder Check Valve Forklift Holes
Charger Protection Drawer Type Design
Certifications:
Our Service:
1.We can design the customerized order picker as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the order picker break down to help you repair.
6.Parts of order picker can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The order picker adopt most of the common parts of hardware.You can buy the parts in your local hardware market.
2.How can customer repair the order picker.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breaks down within one year,we can send the parts free of charge to you.
