Product details
Production Description:
Product Feature:
> Compact structure, small volume, beautiful outlook
>Easy to mount
>Stable working, low noise, high concentricity of components
>No leakage
> Easy to maintaince
Product Application

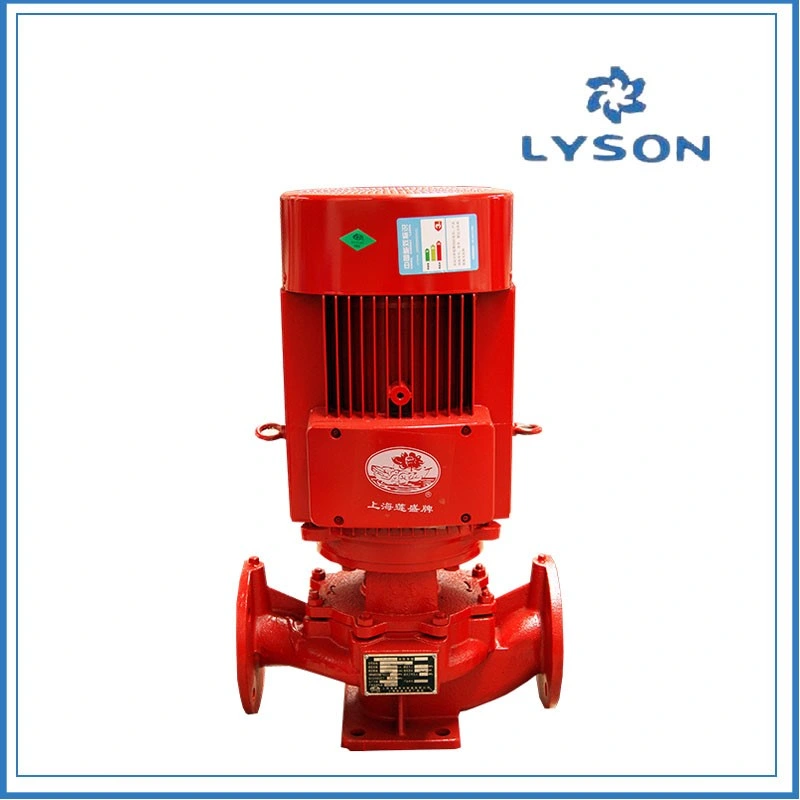

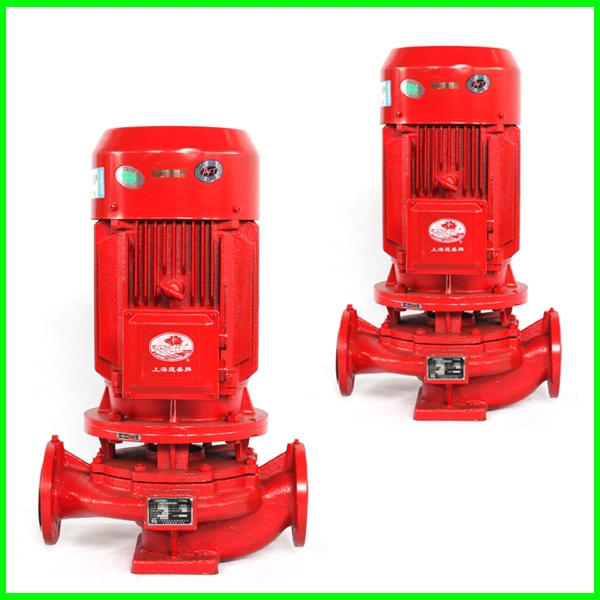

ISG series vertical centrifugal pump is used to transport clean water and other liquids,whose physical properties are similar to clean water.
> Industrial and urban water supply and drainage
> High-rise building pressurized water
> Garden irrigation
> Long distance water delivery
> Bathroom heating and cooling water circulation pressurization and equipmentSpecification
Specification
| Product Name: | ISG SIngles-stage Single-suction Centrifugal Water Pump | ||
| Material: | Cast iron/Stainless Steel | ||
| Seal Material: | Graphite/silicon carbide | ||
| Max. Flow: | 1200m3/h/5283GPM | ||
| Max. Head: | 150M | ||
| Max. Pressure: | 15bar/218psi | ||
| Max. Working temperature: | 80ºC/176F | ||
| Max. rev: | 2950rpm | ||
| Motor Power: | 0.37KW~250kw | ||
| Voltage: | 220v,380v | ||
| Motor: | AFT,50hz/60hz | ||
| Available Connection: | Flange(EN1090-2,IS07005-2) | ||
| Operated: | Electric | ||
| Application Scope: | Water supply,heating system,industrial production,fire-fighting system,air-conditioning system,lrrigation | ||
| Packaging Details: | Wooden box | ||
| Delivery details: | 7-20 days after receiving payment | ||
| Brand: | LYSON or OEM | ||
