What's the features of this lamp?

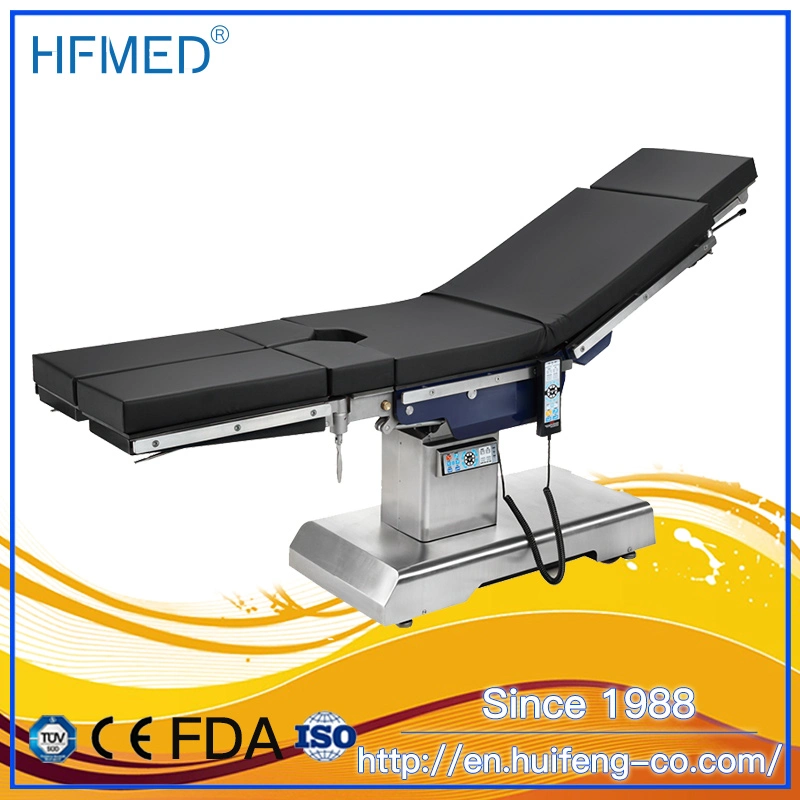

Engineered for increasingly complex surgical scenes, HFEOT99S comes with intelligent automatic control system satisfying various demands of general surgeries.
Longitudinal slide up to 350mm for free access to C-arm.
Extreme weight load capacity of 250kg with highest safety and stability .
Memory pad with antistatic, waterproof design .
Standard override panel control makes the control safer .
"Eesy Click" leg plate controlled by electro-hydraulic and manual .
How about the detailed specification?
| Technical parameter | Details |
| Length/Width | 1970mm/500mm |
| Elevation(up/down) | 690mm/1100mm |
| Trendelenburg | ≥30° |
| Reverse Trendelenburg | ≥30° |
| Lateral Tilt(left/right) | 18°/18° |
| Head Rest(up/down) | 60°/90° |
| Footplate(up/down&horizontal positioning) | 90°90°15° |
| Back plate(up/down) | 75°/35° |
| Kidney bridge | 120mm |
| Sliding | 340mm |
| Power | 220v,50Hz,1.0kW |
| Warranty | 1 year |
How about the package?
| Packing | Wooden case |
| Packing size | 130*77*104cm |
| Weight | GW:330KG NW:280KG |
Company information
With our continuous effort in improving our technology, our products pass international safety certificates, like FDA, CE, ISO 9001:2008 and ISO 13485:2012. We follow the guideline that "Quality for Survival, Credit for Development", which wins outstanding reputation among our customers all around the world. We are looking forward to making cooperation with you in the future. We also believe that what starts here changes the medical field.
We provide professional installation video to illustrate.
2.How do you make sure that the product has high quality?
We have CE and ISO certificate. We also have production/inspection report before packing.
3.Can you put our logo on products?
Absolutely yes with detailed information such as logo. We will show you pictures of your logo on the product before packing.
4.Do you accept OEM (Original Equipment Manufacturer) service?
Yes we accept any OEM service since we are a professional manufacturer for medical equipment with about more than 10 years of OEM experiences.
